3D Laser Profiler with Moving Stage

Keyence Laser Profiler Mounted to a Moving Stage to Create 3D Surface Images

DIAGNOSTIC TECHNIQUES

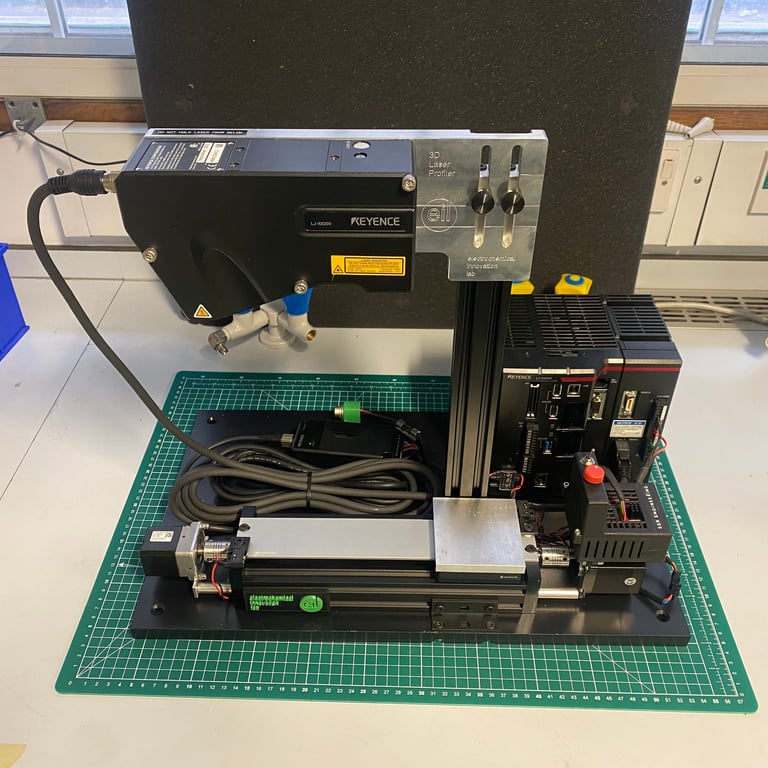

3D laser profiler on a moving stage
3D laser profiler on a moving stage

  • Keyence LJ-X8200 laser profiler - creates a 3D image of object on sample stage

  • Example here used to image battery at a resolution of

  • Custom-designed linear actuator moves sample stage with adjustable motor speeds

  • Laser profiler can be moved vertically within distance range of the device

  • Encoder linked to laser profiler to generate 3D images of subject on sample stage

  • 3D printing of EIL logo with FFF (fused filament fabrication) technology

Electrochemical Innovation Lab (EIL)
University College London (UCL), London, UK

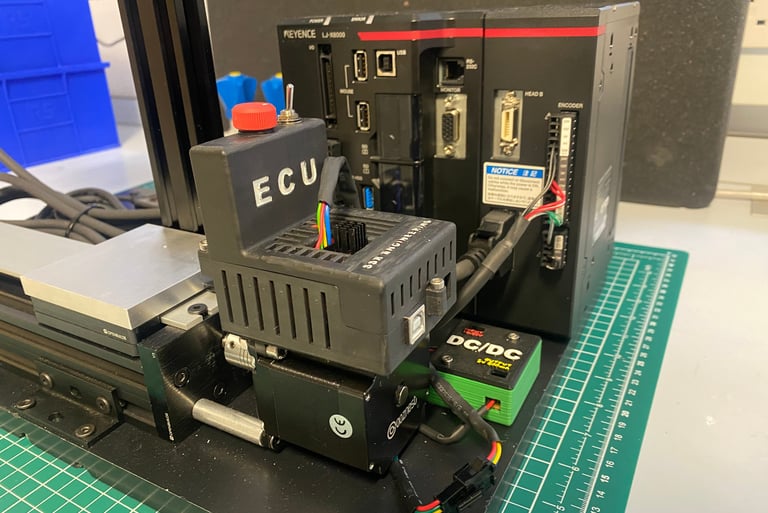

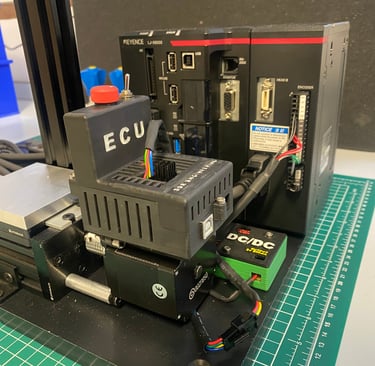

Custom ECU and 3D printed enclosure for controlling the moveable stage
Custom ECU and 3D printed enclosure for controlling the moveable stage

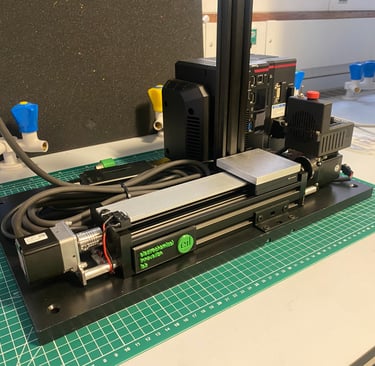

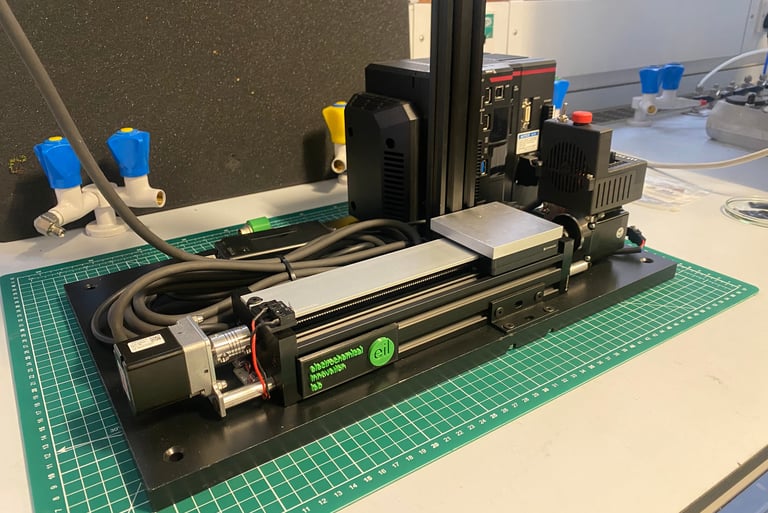

Moving stage for imaging with 3D laser profiler
Moving stage for imaging with 3D laser profiler

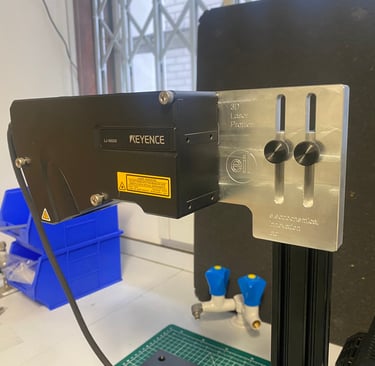

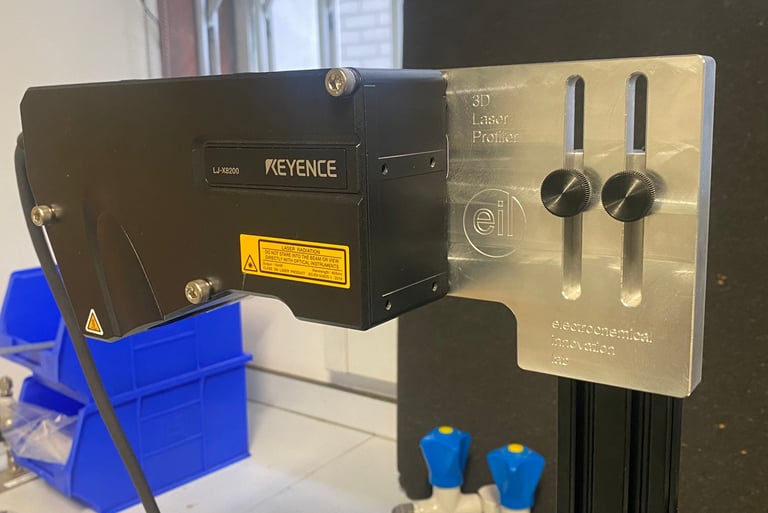

Keyence 3D Laser Profiler
Keyence 3D Laser Profiler

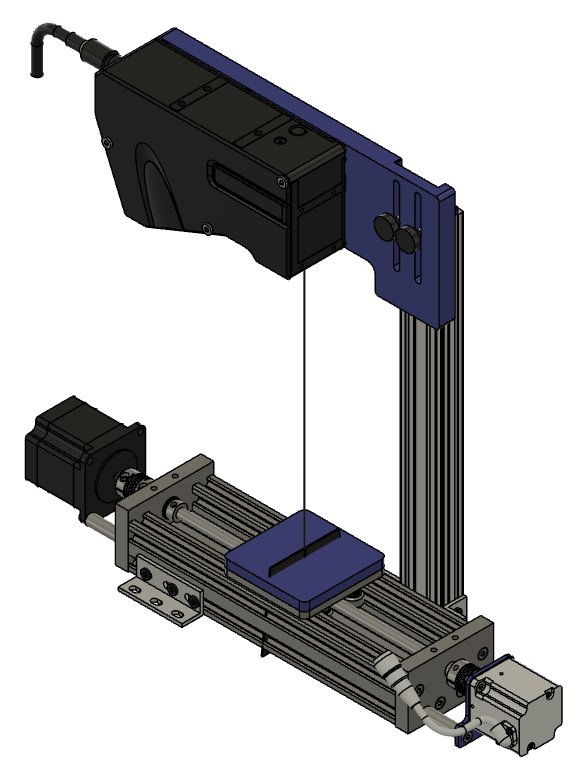

Render of the 3D laser profiler with moving stage
Render of the 3D laser profiler with moving stage
