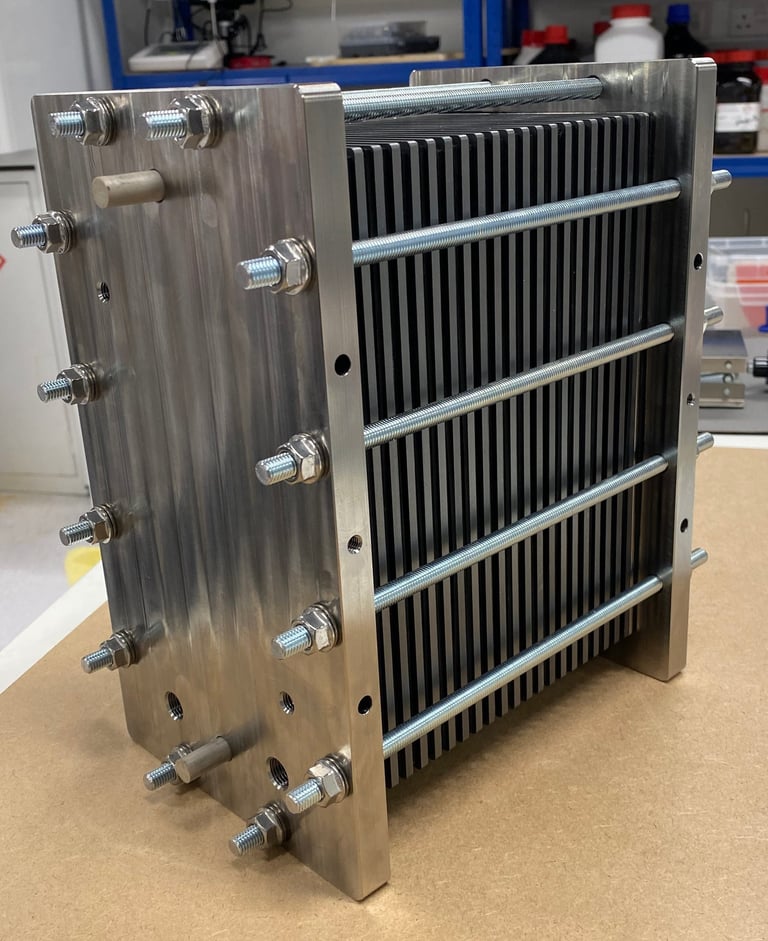

BIOMASS ELECTROLYSER
1kg/day Hydrogen Production
Electrolyser stack developed in collaboration with Ki Hydrogen, a UK-based deeptech start-up co-producing hydrogen and biogenic carbon from their patented method of electrolysing waste biomass.
KI HYDROGEN

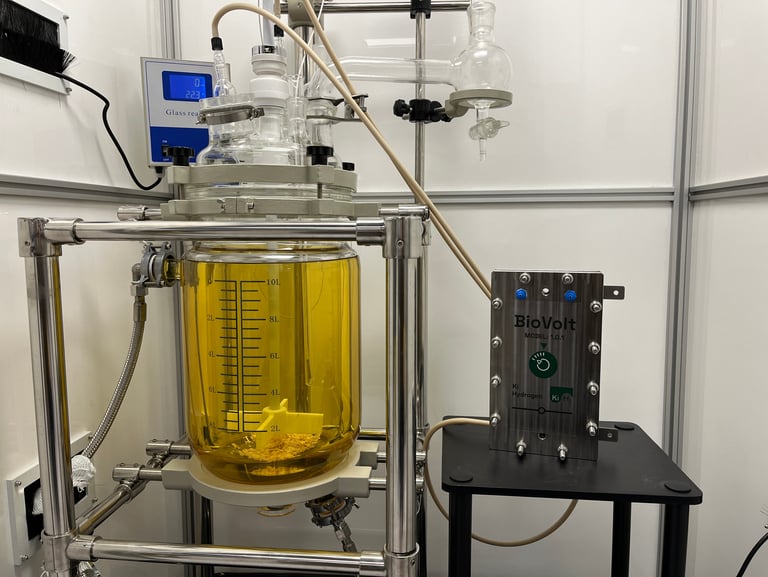

SSR Engineering supported Ki Hydrogen's scale-up from single cell, lab-scale electrolysers to large active-area, multi-cell stacks designed to operate with the 10L and 100L reactor systems (also developed with SSR Engineering), capable of producing up to 1kgH2/day
Stack Development
Material compatibility evaluation for the electrolyte media under test conditions
Flow-field optimised to match lab-scale performance
Custom gasket manufacture for effective sealing and controlled active material compression
Modular stack configuration allowing variable cell counts to match the reactor size
WORK BY SSR ENGINEERING
STACK SPECS

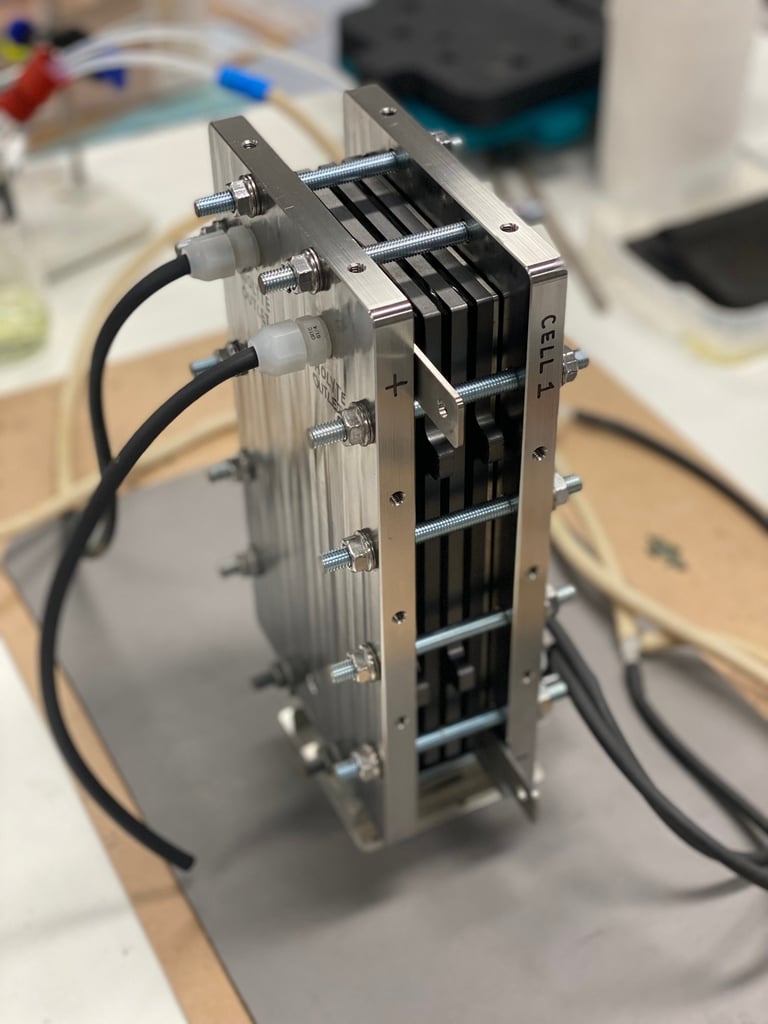

Scalable design: single cell up to 24-cell configurations
Titanium endplates for compression and media distribution
Separate current collectors
Graphite bipolar plates optimise for electrolyte distribution, gas removal and thermal management - Designed to minimising shunt currents and ensure uniform current and temperature distribution across the active area
SSR Engineering-fabricated gaskets providing optimal MEA compression and media sealing
Integrated heating cartridges ports and thermocouple slots for temperature control
Rigid mounting points on endplates
Custom assembly jig for rapid stack assembly and disassembly
KI HYDROGEN TECHNOLOGY OVERVIEW
Ki Hydrogen has developed an innovative biomass electrolysis technology that converts waste biomass feedstock into hydrogen and biogenic carbon.
With an estimated 10 billion tonnes of available lignocellulosic biomass (from agriculture, forestry and industrial waste) that would otherwise decompose, this process provides a cost-effective route to hydrogen production.
Unlike conventional water electrolysis, biomass electrolysis requires 50% less energy, targeting hydrogen production at $2/kg and biogenic CO2 at $100/tonne with an energy consumption of 25 kWh/kgH2.
Following successful lab-scale validation, Ki Hydrogen is now proving the technology at practical reactor sizes.
