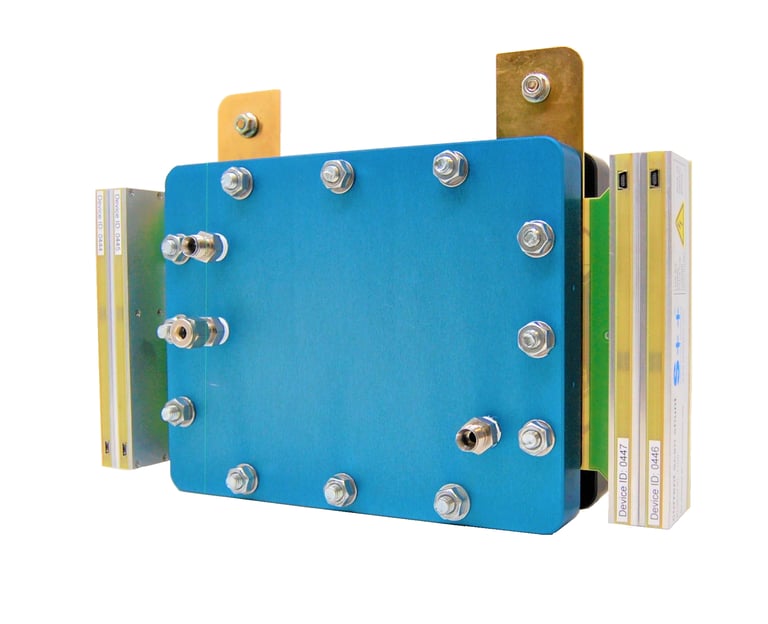

PEFC #1

300 W Polymer Electrolyte Fuel Cell

FUEL CELLS

Hydrogen fuel cell polymer electrolyte
Hydrogen fuel cell polymer electrolyte

  • Configurable for 1-3 cells with a net max. power output of 100 - 300 W

  • Graphite or gold-coated aluminium flow-field plates including cooling channels

  • Anodised end plates with integrated gas fittings

  • Custom-made gaskets for gas sealing and effective compression

  • Designed to also allow current, temperature and pressure mapping with no impact on performance

  • Placements for heating cartridges and thermocouples for thermal control

  • Good power stability, performance and durability over a range of operating temperatures

Electrochemical Innovation Lab (EIL)
University College London (UCL), London, UK

100 - 300 W

Hydrogen + Air

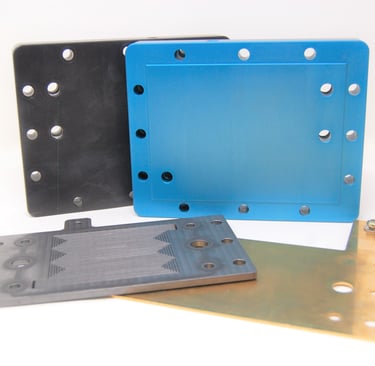

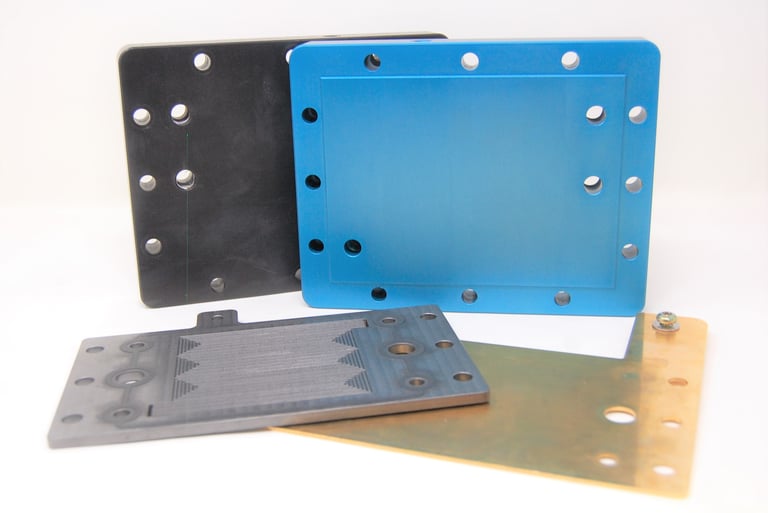

Unassembled hydrogen polymer electrolyte fuel cell stack
Unassembled hydrogen polymer electrolyte fuel cell stack

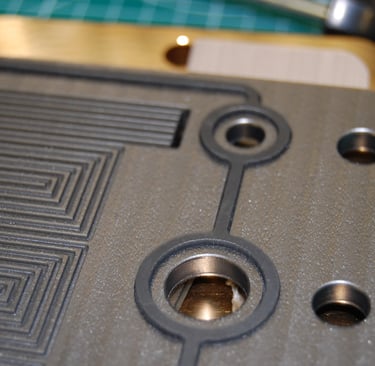

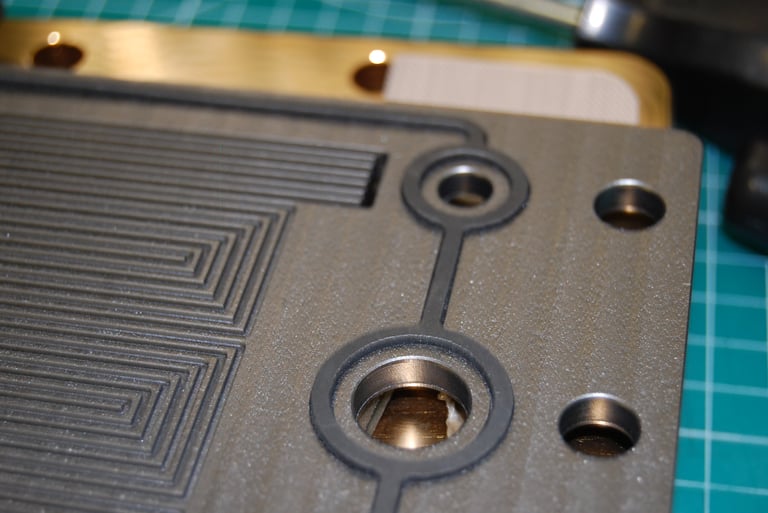

Graphite bipolar plate for hydrogen polymer electrolyte fuel cells
Graphite bipolar plate for hydrogen polymer electrolyte fuel cells

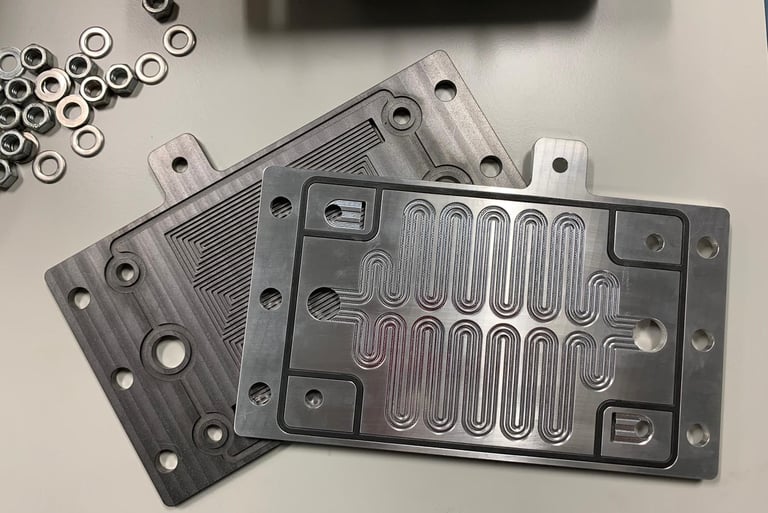

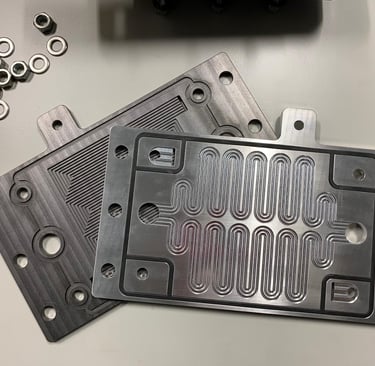

Bipolar flow plates with cooling channels for hydrogen polymer electrolyte fuel cells
Bipolar flow plates with cooling channels for hydrogen polymer electrolyte fuel cells
