SYDROGEN ENERGY
HYDROGEN POWER GENERATOR

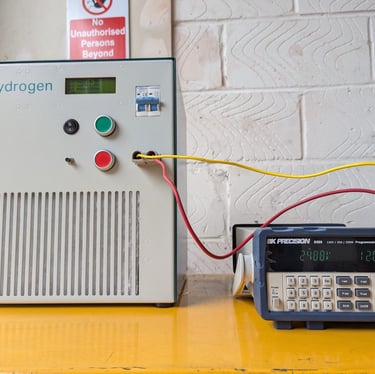

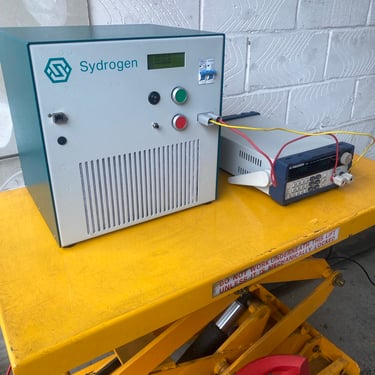

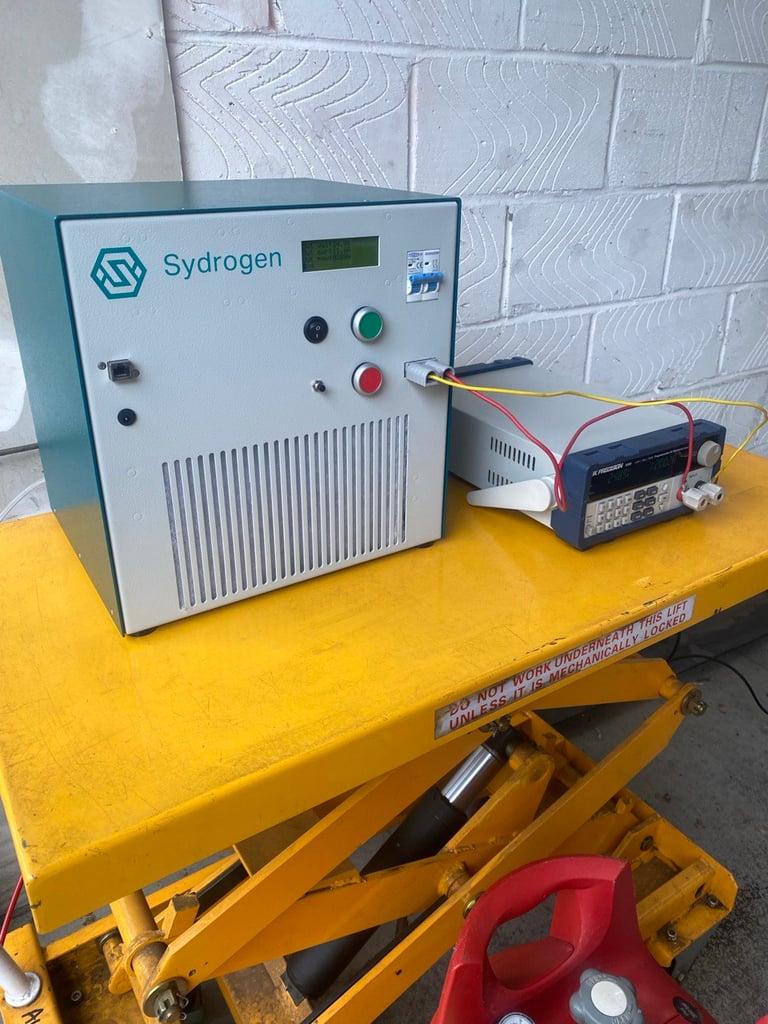

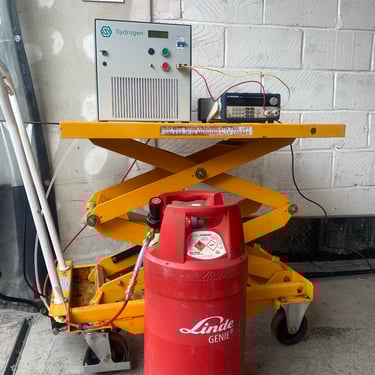

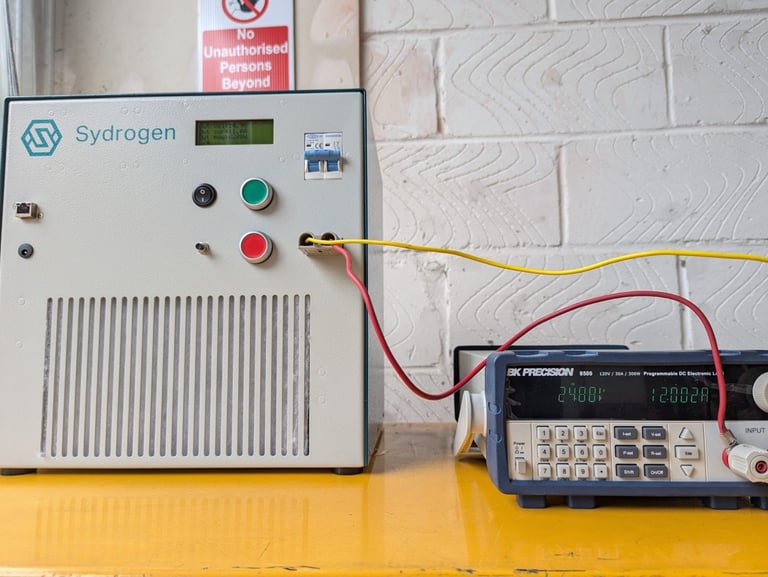

SSR Engineering provided the testing facilities for operating the KZ-300 for Sydrogen's first UK visit

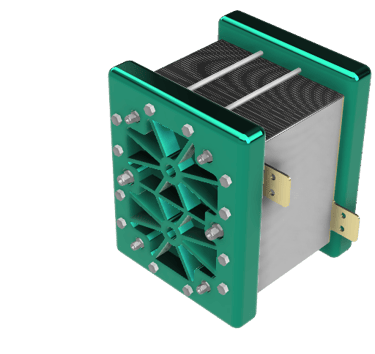

300 W air-cooled hydrogen fuel cell power generator
12 V or 24 V output
Remote power generation for DC applications
KZ-300 by Sydrogen Energy (Singapore)
300 W POWER COMPARISON
Assuming highly efficient DC/DC conversion to 24 V
PETROL GENERATOR
(4L Tank)
Calculation based on a 0.6 kWh petrol portable generator @ 50% power - manufacture specification
6.5 hr continuous operation (typical operating time for average small power system)
1 min refuel time
(assuming you are quick)
~1800 Wh/kg
3,000 cycle lifetime, reliable technology, complex servicing + toxic exhaust fumes
HYDROGEN GENERATOR
(PEM Fuel Cell)

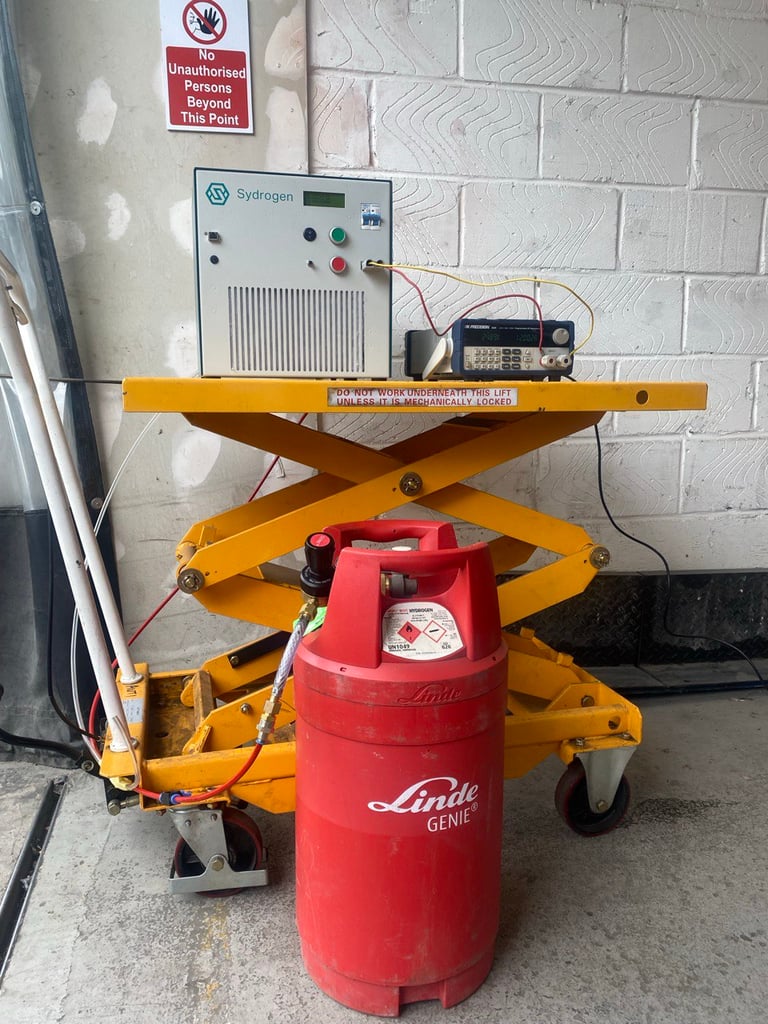

Calculation based on the KZ-300 system and 300 bar BOC GENIE bottle
~20 hr continuous operation
1 min bottle replacement
(assuming you are quick or have a gas manifold - you don't need to stop operation)
~4000 Wh/kg (literature)
10,000 hr total lifetime, simple servicing, water vapour exhaust + pressurised gas safety
BATTERY GENERATOR
(Lead-Acid)
Calculation based on a 12 V 100 Ah lead-acid battery (car battery) - Charged and discharged within manufacture specification
4 hr discharge (C/4 rate)
16 hr full recharge time
(assuming CC-CV profile to maintain life longevity)
30-50 Wh/kg
300 cycle lifetime, tolerant charging/discharging limits + simple control requirements
BATTERY GENERATOR
(Lithium-ion)
Calculation based on a 22.8 V 232 Ah Tesla Model S module - Charged and discharged within manufacture specification
17 hr discharge (C/17 rate)
8 hr full recharge time
(assuming standard charging procedure)
200-300 Wh/kg
500-1000 cycle lifetime (~80% starting capacity), range of formats, safety risk + precise control requirements
300 W power output
12 V or 24 V output selectable
Air-cooled portable power generator
Rated for outdoor use
~4 L/min H2 consumption @ 300 W
SPECIFICATION
Get in touch if you are looking for bespoke hydrogen fuel cell systems testing and validation or testing facilities
