The Cell Series by SSR Engineering is a portfolio of advanced battery research equipment designed for precise and controlled investigation of battery failure modes.
Each prototype is engineered to support cutting-edge experimental needs in battery safety testing, failure analysis and thermal-electrical diagnostics.
Whether facilitating in-situ imaging during failure or enabling repeatable, localised mechanical damage, the Cell Series equips researchers with the tools necessary to push boundaries in battery science and engineering.
Cell Beamline
Enclosed chamber
Cell Mod
Write a short description of this category
Cell Therm Pen
Write a short description of this category
CELL SERIES
The Cell Series by SSR Engineering is a portfolio of advanced battery research equipment designed for precise and controlled investigation of battery failure modes.
Each prototype is engineered to support cutting-edge experimental needs in battery safety testing, failure analysis and thermal-electrical diagnostics.
Whether facilitating in-situ imaging during failure or enabling repeatable, localised mechanical damage, the Cell Series equips researchers with the tools necessary to push boundaries in battery science and engineering.
Cell Beamline
Enclosed chamber
Cell Mod
Write a short description of this category
Cell Therm Pen
Write a short description of this category

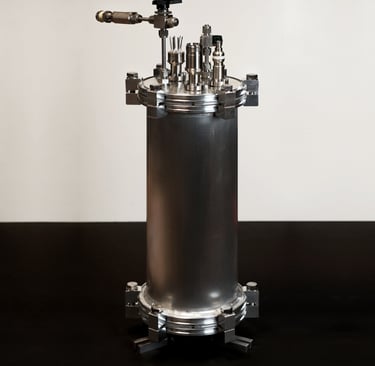

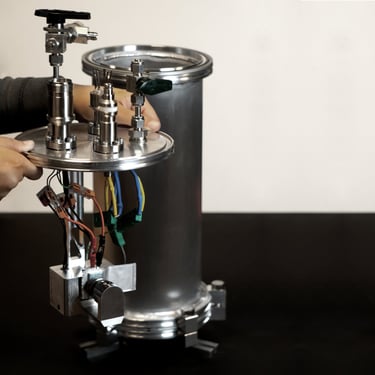

Battery Failure Enclosure
The CellVantage is an advanced battery failure test enclosure designed specifically for synchrotron beamtime experiments, although not limited to this.
It facilitiates controlled battery failure initation via thermal (heating) or electrical (short circuit, overcharge) methods while enabling real-time imaging of structural and chemical changes inside the battery.
CellVantage is ideal for in-depth visualisation of failure dynamics under precise experimental conditions.
MAIN UNIT
Construction - Aluminium
Batteries - All formats possible - interchangable internal holders
Gas ports for gas analysis and purging
3x thermocouple inputs
Programmed cell heating
Battery electrical connections
BNC connector for acoustic diagnostics
Swivel legs for mounting
OPTIONAL EXTRAS

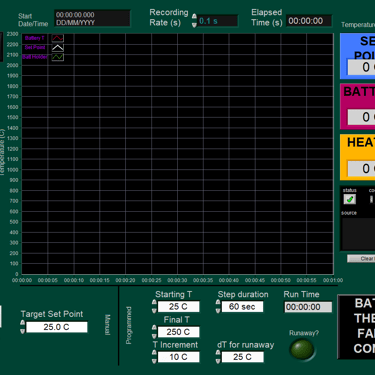

Software - Automation + Data acquisition

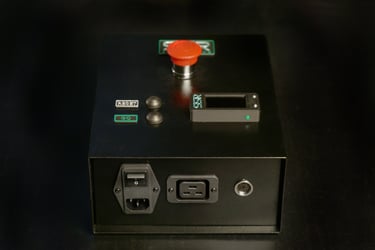

External heater PID unit
Temperature recording module
Potentiostat / Battery cycler
Connectors, heating elements, thermocouples etc.

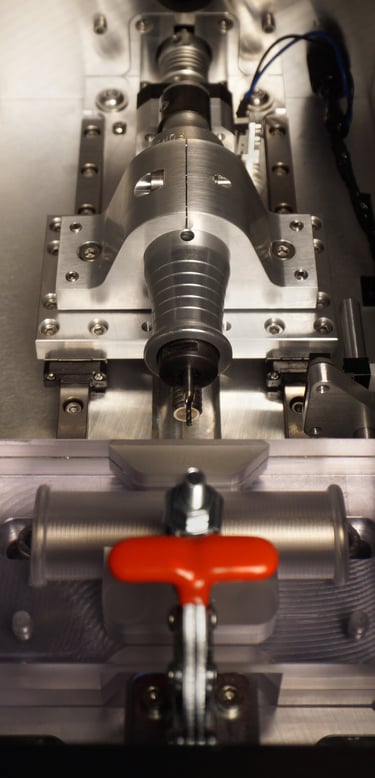

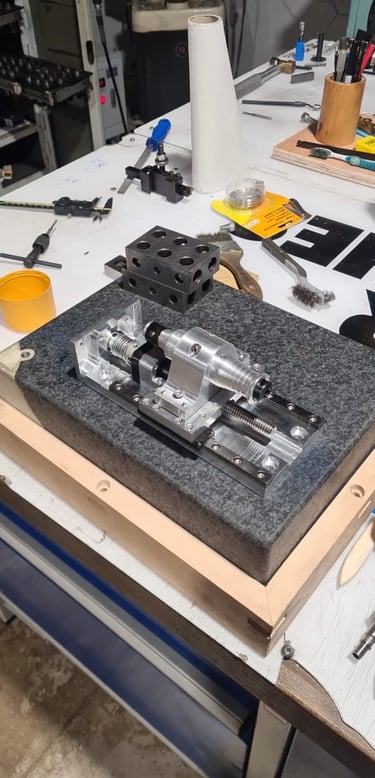

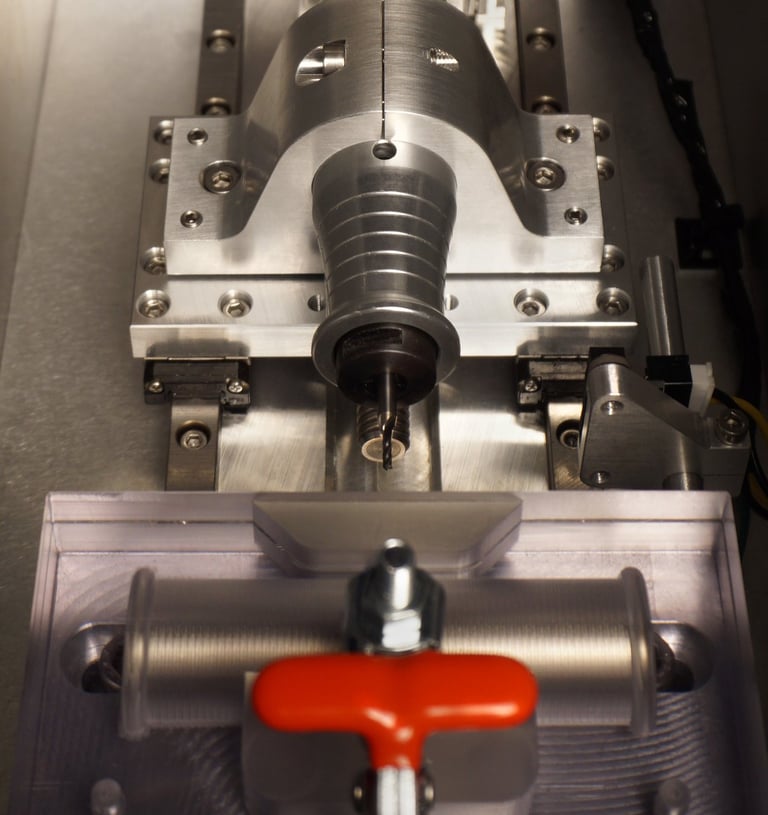

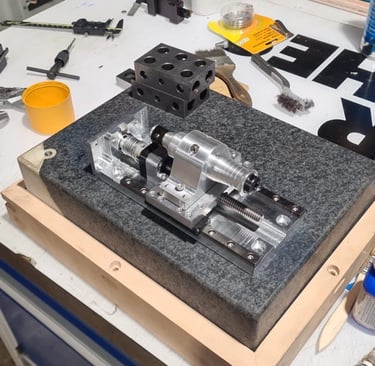

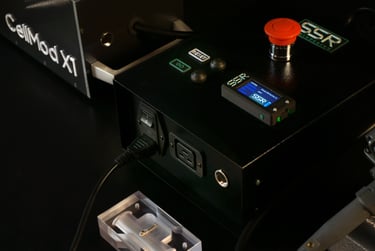

Battery Surface Scoring
CELLMOD

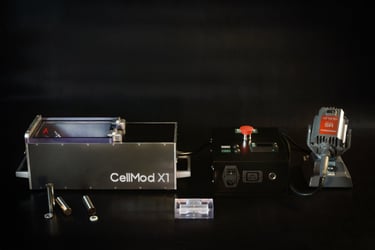

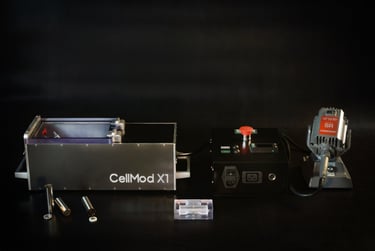

The CellMod is a precision scoring fixture, engineered for research groups to score the outer casing of cylindrical batteries without puncturing them.
This modification ensures that when batteries undergo a controlled failure, the rupture begins at the predetermined weakened location, enabling consistence and repetable failure behvaiour.
MAIN UNIT

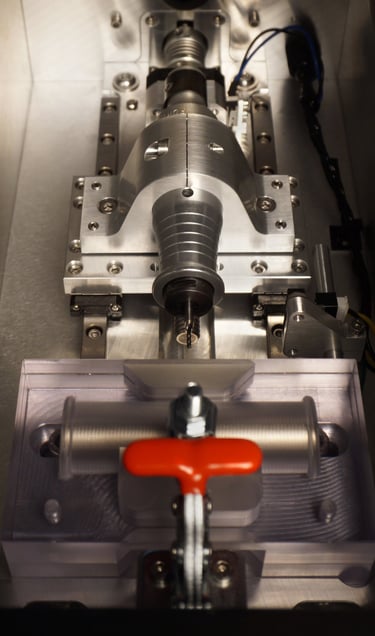

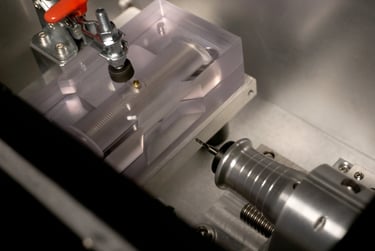

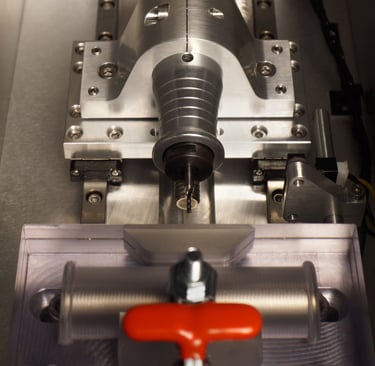

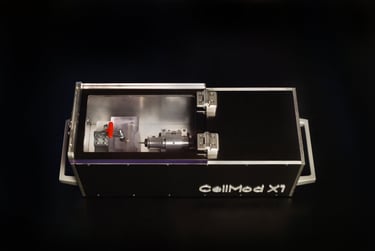

Precision drill enclosure with viewing window
Interchangable drill bit
Battery held in a holder and mounted to a stage
Separate electronics enclosure with user control of the drill assembly
OPTIONAL EXTRAS
Gas ports for forced ventillation

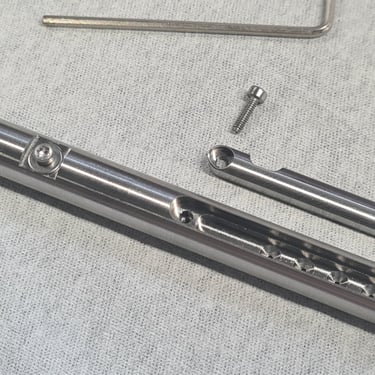

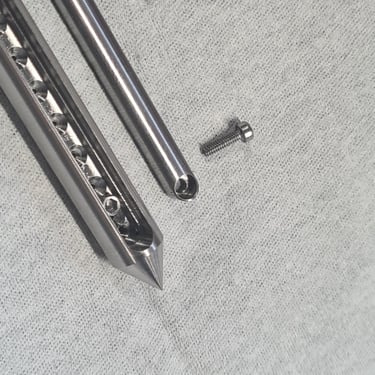

Battery penetration nail with 9x TC embedded

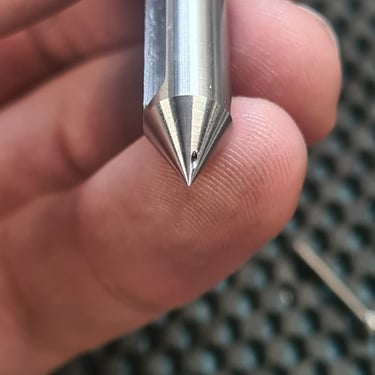

The CellIgnite integrates up to 9 embedded thermocouples within a specially designed nail based on standard nails used in penetration abuse testing.
This setup allows measurements of detailed temperature profiles during mechanical penetration tests, delivering valuable thermal data correlated with the battery's failure progression.
CellIgnite enhances the understanding of thermal responses in abuse testing scenarios.
MAIN UNIT
SS nail with up to 9 embedded thermocouple slots (including one at the nail tip)
OPTIONAL EXTRAS
Software - Data acquisition
Temperature recording module
Thermocouples
